Custom Hoist Telescopic Cylinders

Authorized Distributor for Ohio, Kentucky & Indiana

Hydramachine is the region's authorized supplier of Custom Hoists Inc. hydraulic cylinders, one of America's leading manufacturers of mobile hydraulic cylinders since 1973. Replacement telescopic cylinders for dump trucks, refuse packers, and custom specifications with full manufacturer backing.

Request a Cylinder Quote → Call (513) 575-5552
  • Authorized Custom Hoists Dealer
  • Single & Double-Acting Options
  • Inventory & Sizing Support

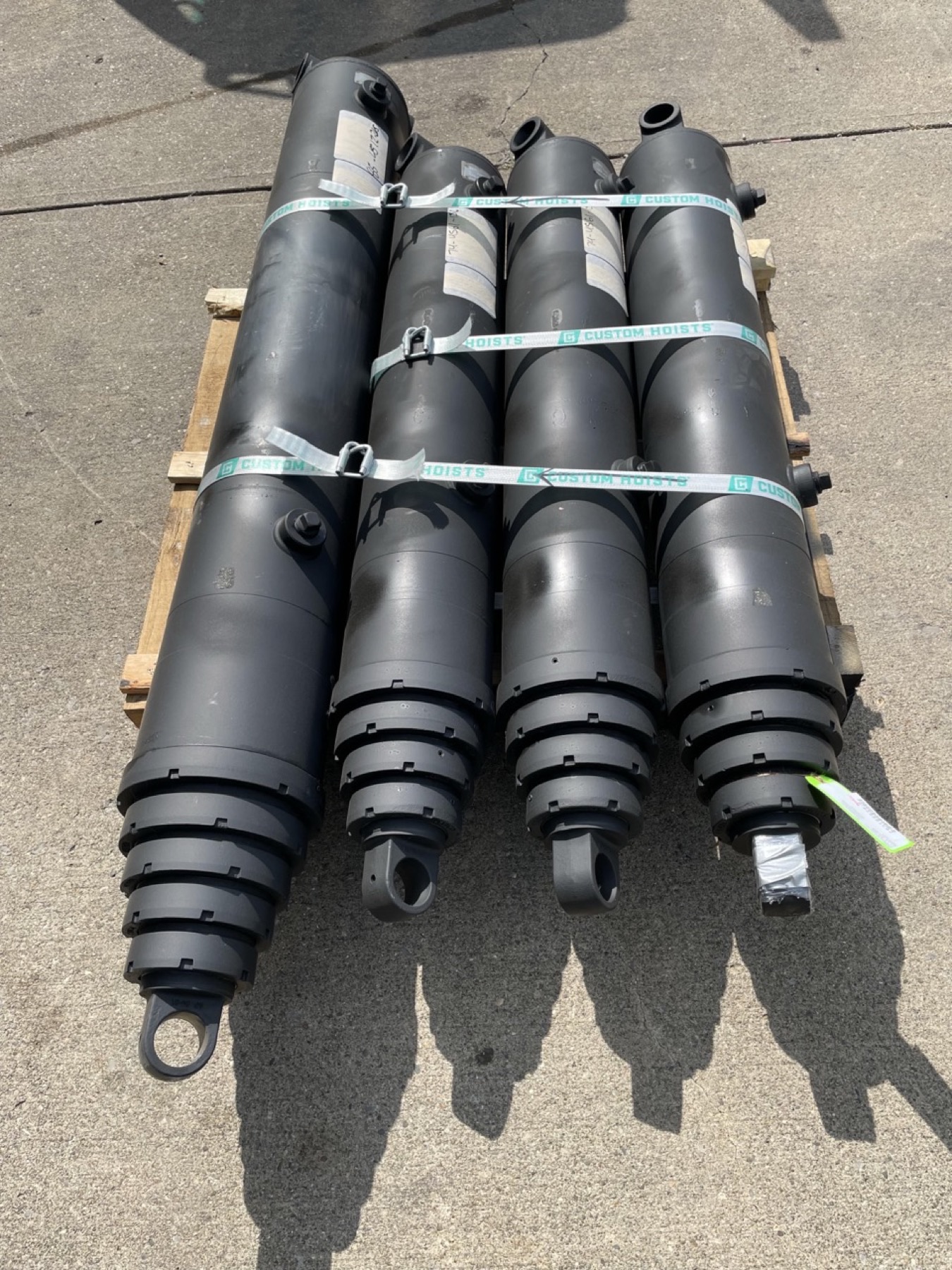

Custom Hoists telescopic cylinders in inventory
Custom Hoists Inventory Single-acting and double-acting telescopic cylinders available for application matching.

Single-Acting Telescopic Cylinders

Custom Hoists single-acting telescopic cylinders are built for the demanding conditions of mobile equipment. High-strength DOM tubing throughout the cylinder provides reliable performance in applications with system pressures up to 3,000 PSI.

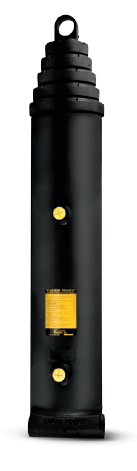

Single-acting telescopic Custom Hoists cylinder from manufacturer catalog
Specifications
ParameterRange
Plunger Diameters2" through 14.25"
Stroke LengthsUp to 440"
Moving Stages2 through 6
System PressureUp to 3,000 PSI
TubingHigh-strength DOM throughout

Common Applications

  • Dump Trucks & Trailers
  • Ejector Trailers
  • Grain Carts
  • Agricultural Equipment
  • Platform Bodies
  • Tilt Decks

Double-Acting Telescopic Cylinders

For applications requiring full hydraulic control in both directions, Custom Hoists manufactures double-acting telescopic cylinders to individual specifications. These cylinders provide precise, powerful operation in the most rigid applications.

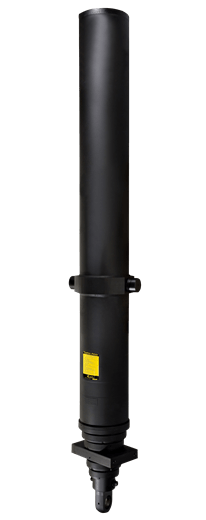

Double-acting telescopic Custom Hoists cylinder from manufacturer catalog

Common Applications

  • Refuse Trucks
  • Solid Waste Packers
  • Trash Compactors
  • Transfer Trailers
  • Push-Out Trailers
  • Roll-Off Units
  • Construction Equipment

Why Buy Through Hydramachine

  • Authorized Dealer

    Factory-direct pricing and full manufacturer warranty. Your purchase is backed by Custom Hoists Inc.

  • Expert Sizing & Selection

    We help you select the right cylinder configuration for your specific application. Plunger diameter, stroke, stages, and mounting style matched to your equipment.

  • Repair Support

    If your existing Custom Hoist cylinder needs service, we have the equipment, parts knowledge, and experience to rebuild it. One source for new and repaired cylinders.

  • Local Inventory & Parts Availability

    Common configurations available for quick turnaround. Custom orders direct from the factory in Hayesville, Ohio.

Custom Hoists, Inc. logo Browse the full Custom Hoists catalog

Tell us your application, equipment, and cylinder requirements. We'll recommend the right Custom Hoist configuration.

Custom Hoists

Telescopic Cylinder Applications

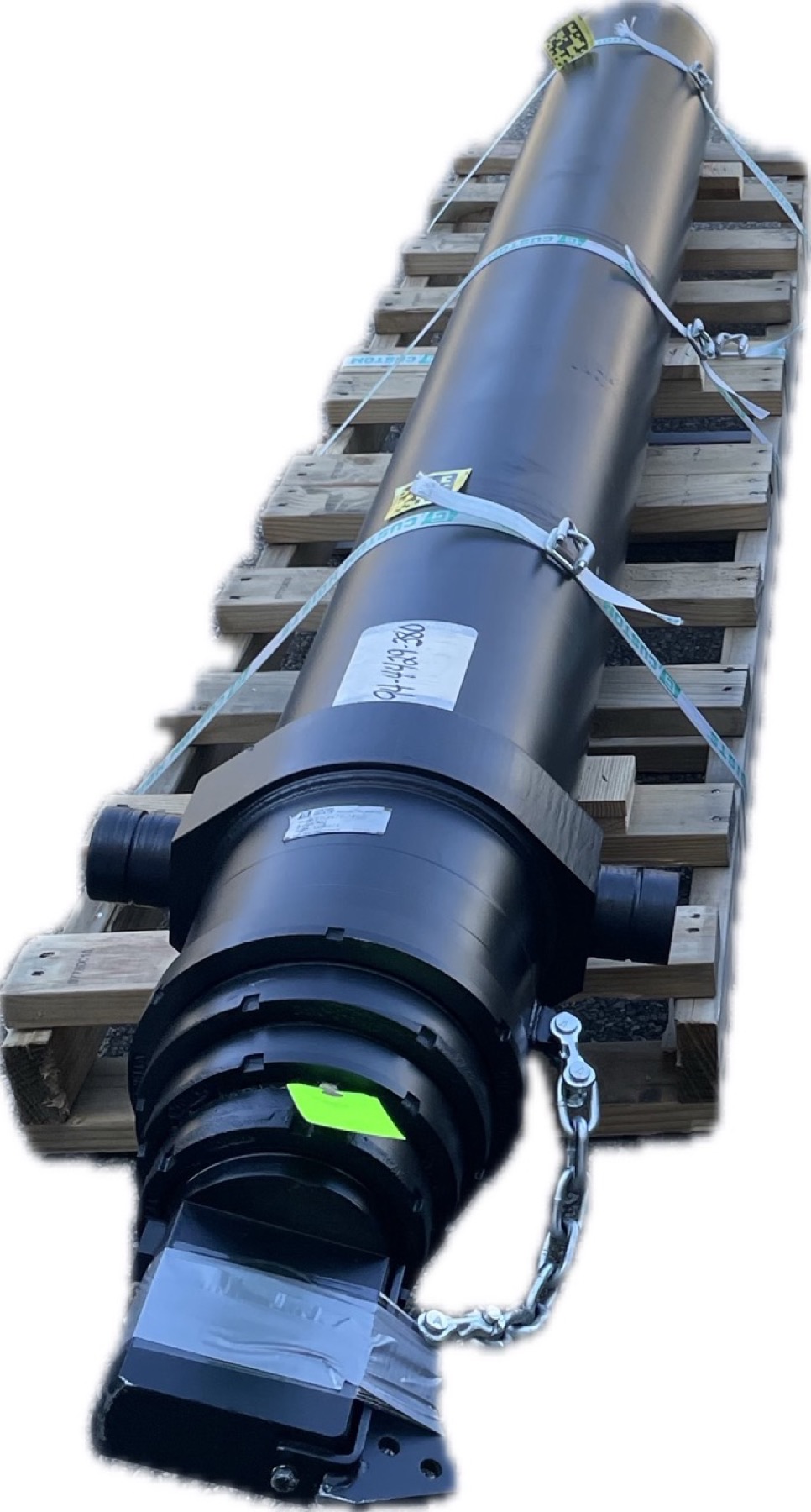

Field Application Custom Hoists cylinder for landfill dumper application on pallet
Landfill Dumper Cylinder Large Custom Hoists telescopic cylinder configured for heavy-duty landfill dumper operation.
In Stock Set of new Custom Hoists telescopic cylinders ready for application use
New Cylinder Inventory Multiple new Custom Hoists telescopic cylinders available for application-specific sizing and selection.
"Needed a replacement telescopic cylinder for our dump trailer fast. Hydramachine had the right Custom Hoists unit in stock and helped us match the specs perfectly. Great service."
Larry W.
Fleet Manager, Transportation
Google Review

Related Services

Need Telescopic Cylinder Inventory Support?

Share your application and specs. We can help you choose the right in-stock Custom Hoists cylinder and related components.
